Gypsum board shape detection system: can detect the width, thickness, wedge edge width, wedge edge depth, board length, diagonal, etc. of gypsum board.
Width measurement: repeatability: 0.1mm.
Thickness measurement: repeatability: 0.1mm.

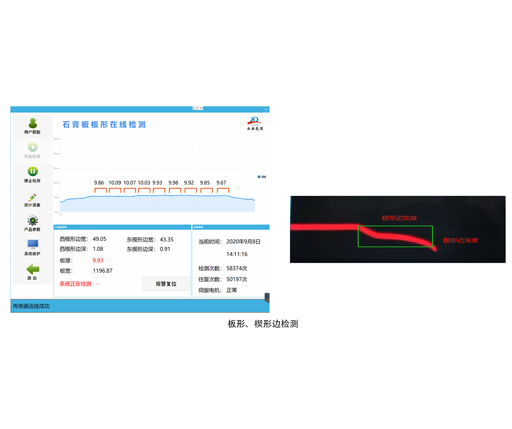

Wedge edge detection:
1. Inspection content: width and depth of wedge edge.
2. Depth measurement repeatability: 0.1mm, resolution 33μm, maximum sampling frequency 60fps.
3. Width measurement repeatability: 1mm, resolution: 0.2mm, maximum sampling frequency: 60fps.

Diagonal detection:

1. Inspection content: After the slitting saw, during the movement of the board, the inspection object is the top layer of the two-layer board.
2. Detection accuracy: ±1.5mm.
